Machine for liquid soap production and liquid soap manufacturing machine

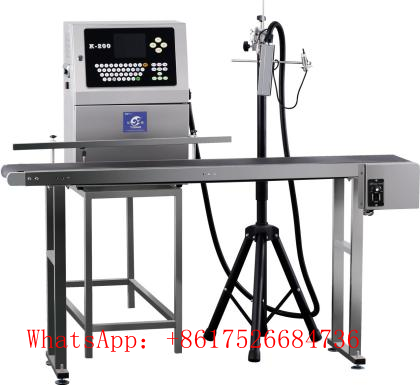

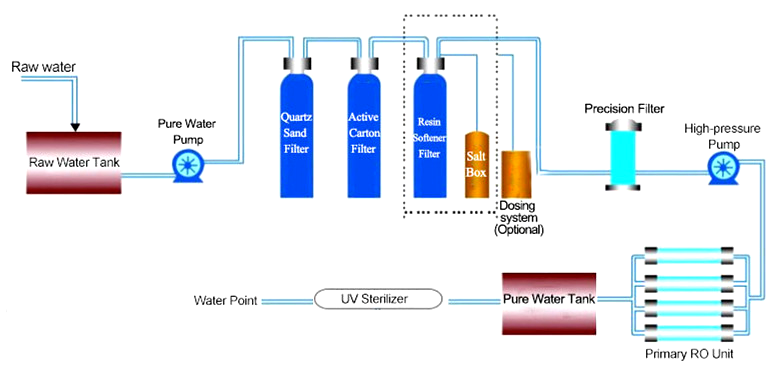

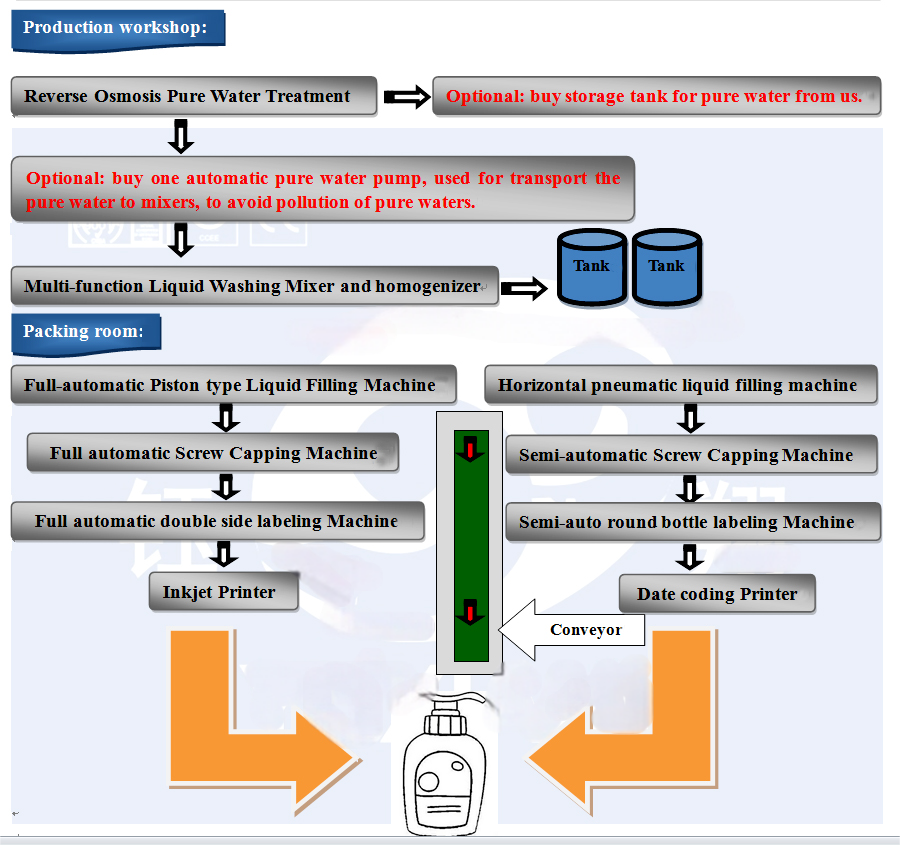

RO Pure water treatment---Liquid washing mixer and homogenizer---Storage tanks---Filling machine---Capping machine---Labeling machine---Inkjet printer (Optional: Aluminum foil sealing machine, conveyor, plastic film shrinking machine )

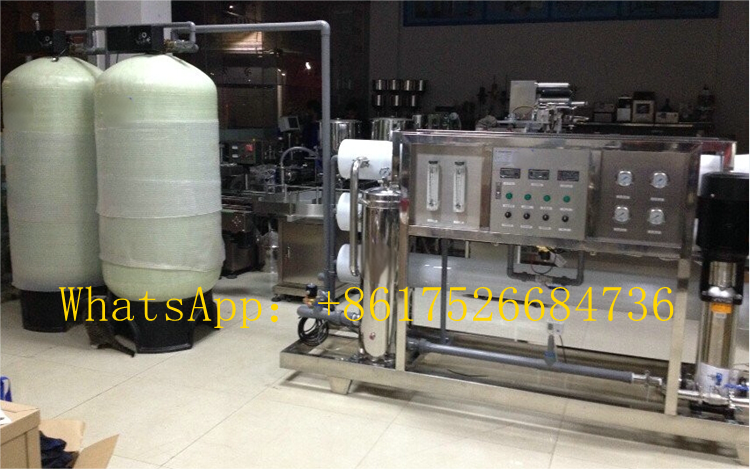

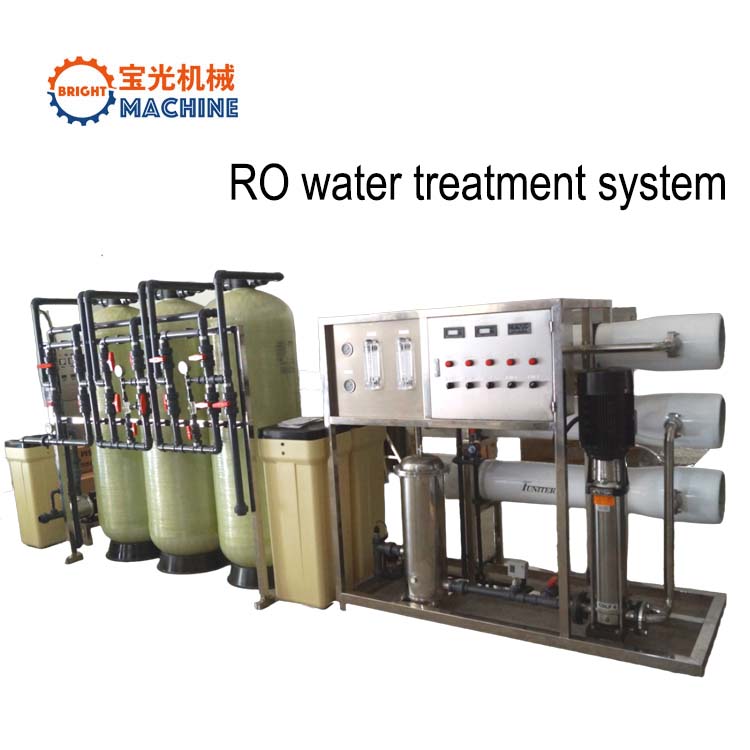

The design of the system is according to the municipal water quality requirements. System configuration and setting can completely
meet the requirement in water conditions, the energy-saving, simple operation and safety for the principle, And guarantee system can long-term and stable operation.

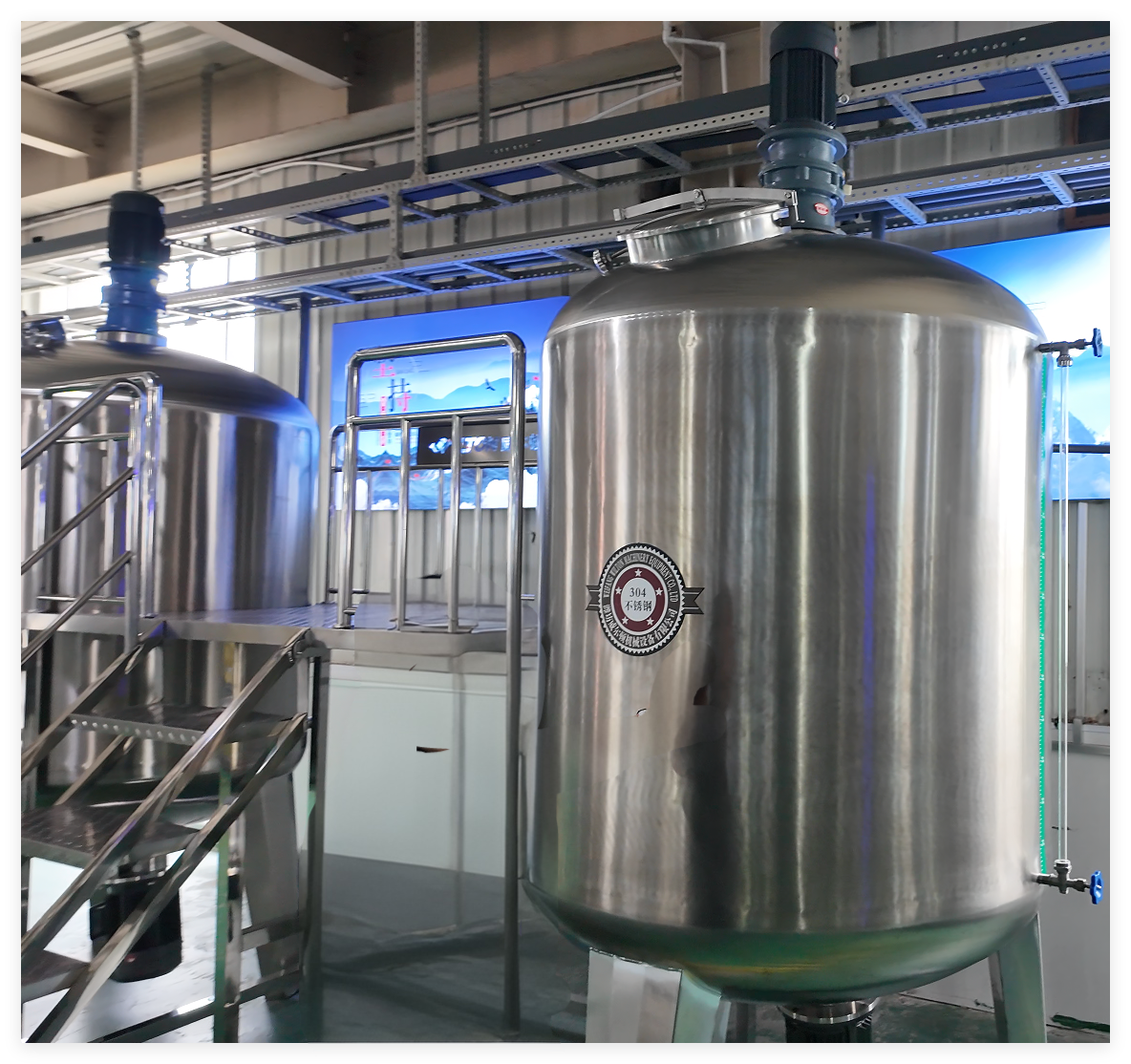

Liquid soap mixer machine

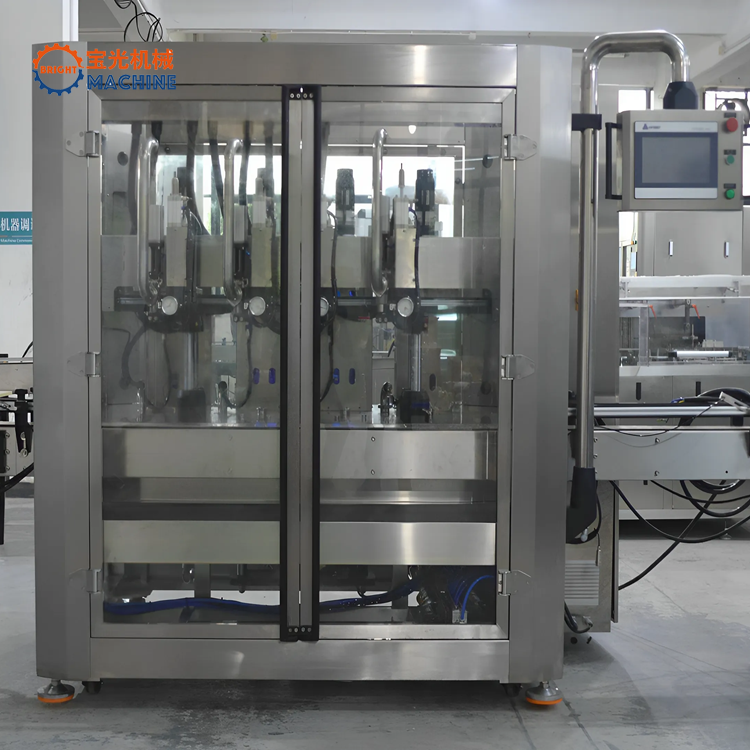

Liquid Soap Filling Machine ( Automatic 4 Heads Tracking Filling Machine)
Product Description:
1, the machine is fast: the conversion bottle type product speed is fast, there is a formula saving function, save parameters after a button can complete
the machine, saving time is very convenient and practical;
2, suitable for a wide bottle type: as long as it can stand on the line, the bottle mouth vertical upward of the various special-shaped bottles are also applicable,
without special adjustment, the bottle can be placed on the transport, greatly reducing the labor intensity of workers;
3, wide range of applicable products: applicable to cosmetics, food industry cream oil products: such as: shampoo, laundry detergent, hand soap, body wash,
conditioner, acid milk, essential oil, food/industrial oil, etc.;
4, high efficiency: fast filling speed, good stability, filling using servo motor control, high filling accuracy;

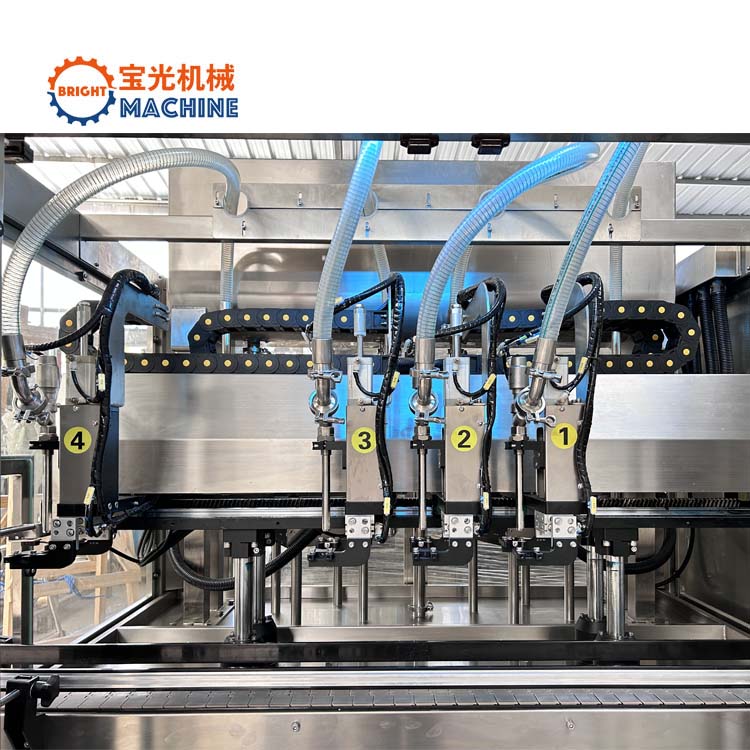

5. The filling nozzle is equipped with a servo lifting function, allowing it to reach the bottom of the bottle to start filling and be lifted gradually,
It can effectively prevent the formation of foam.
Technical specification：
|
Filling head
|
4 |
|
Filling range
|
100-5000ml，Caliber greater than 30mm |
|
Filling speed
|
2000-3600Bottles/hour (depending on product filling volume and sample) |
|
Accuracy of measurement |
±1% |
|
6KW voltage 380V |
|
|
working air pressure |
0.6-0.8mpa |
|
Air consumption |
6～7m³/min |
|
Machine size
|
3000*1500*2100mm |
|
Machine net weight |
900kg |

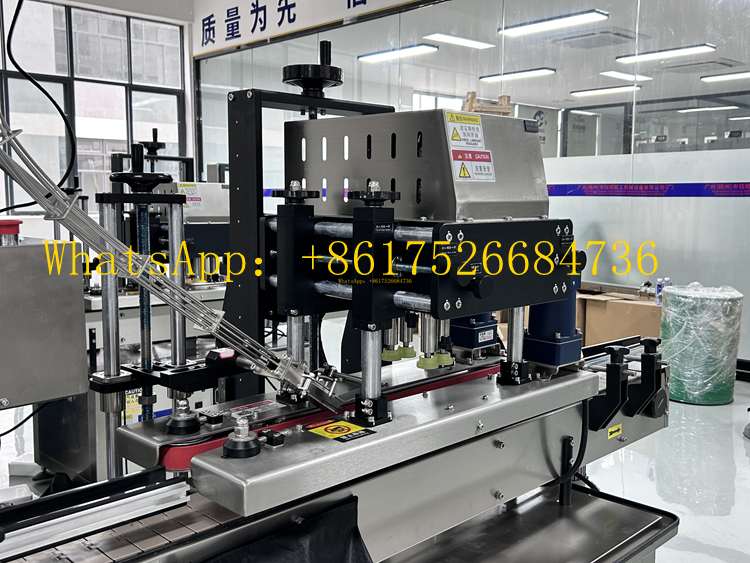

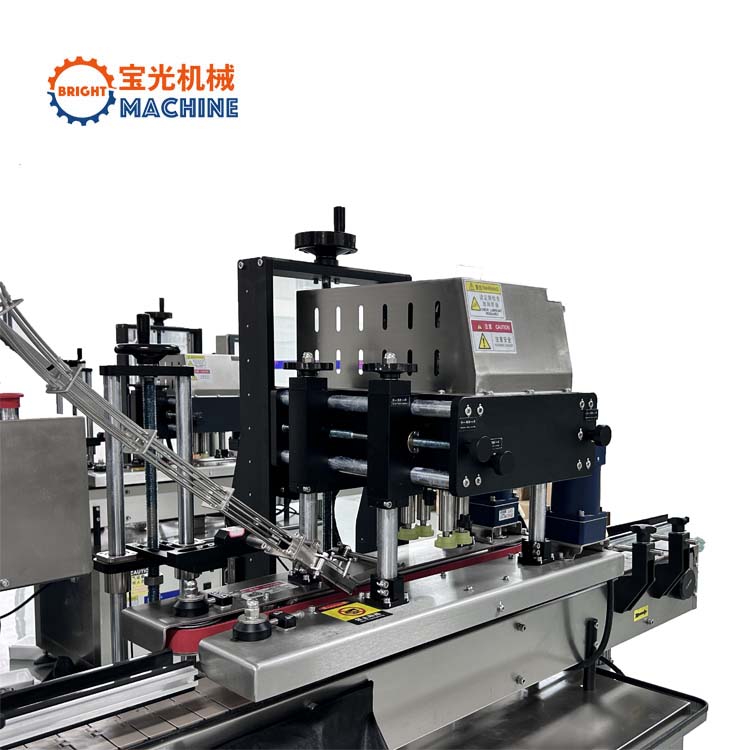

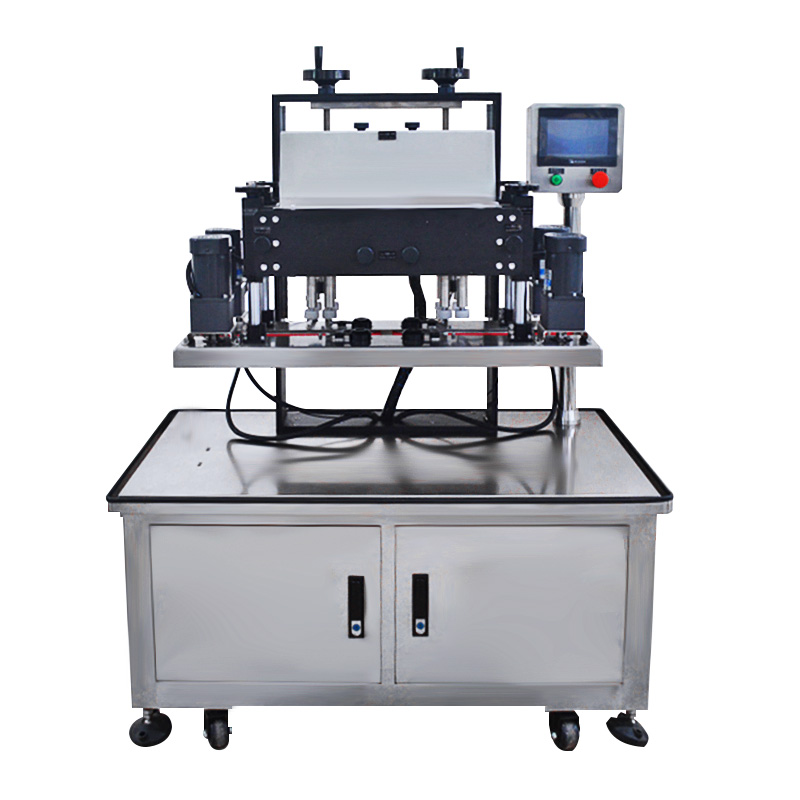

The fully automatic in-line capping machine is an improved design based on international advanced models. It features fast capping speed,
high qualification rate and convenient operation. It can be applied to the capping of different bottle shapes in industries such as food, pharmaceuticals,
daily chemicals, pesticides and cosmetics. The machine has a high degree of automation, good stability and is easy to adjust. (If equipped with a capping
machine, it can perform automatic capping.) It can be selected and configured according to actual needs. The stainless steel of the appearance is 304
Technical parameters
|
Parameter |
Specification |
|
Power Supply (V/Hz) |
AC 220/50 |
|
Power (W) |
2000 |
|
Applicable Lid Diameter (mm) |
30-80 (Customizable) |
|
Operating Air Pressure (MPa) |
0.5-0.7 |
|
Production Capacity (bottles/min) |
50-90 |
|
Dimensions (L×W×H) (mm) |
2000×900×1600 |
|
Net Weight (kg) |
250 |

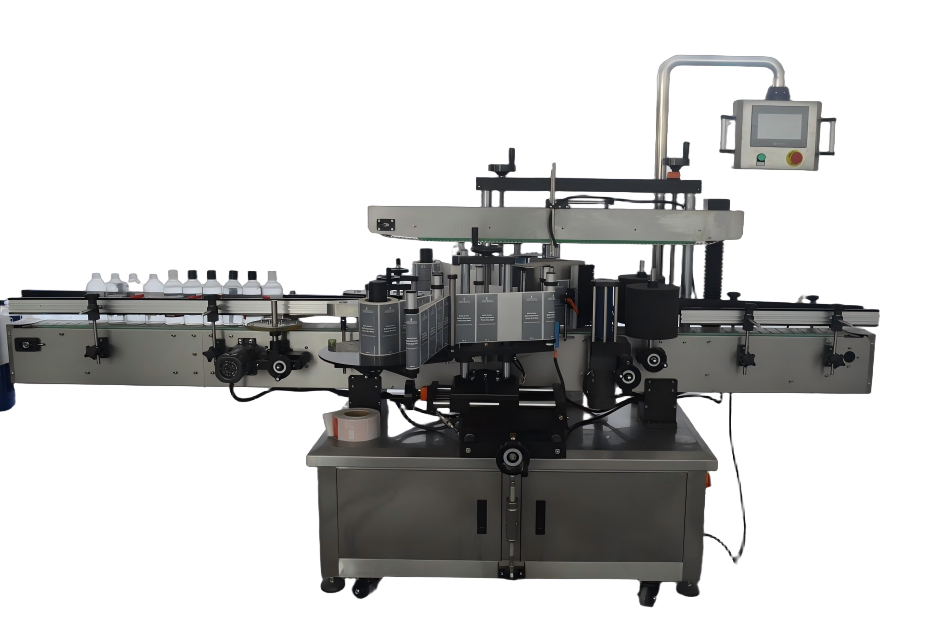

Product description
This machine is suitable for labeling all kinds of bottled products in food, condiment, medicine, wine, oil, cosmetics and other industries.
Can be customized non-standard.The whole machine with exquisite design, remove the unnecessary complexity and bulky machinery,
to set the maintenance and repair can be completed without professional personnel, need to replace the product, as long as the simple adjustment,
you can immediately line production.
1: The whole machine is made of stainless steel and high-grade aluminum alloy.
2: The label head is the use of closed-loop motor.
3: All electric eyes are German advanced photoelectric eyes.
4:PLC with large man-machine interface control.
5: This machine is suitable for a small number of various products single single operation.
Technical specification
