Product Attributes :
I. Brief Instruction:

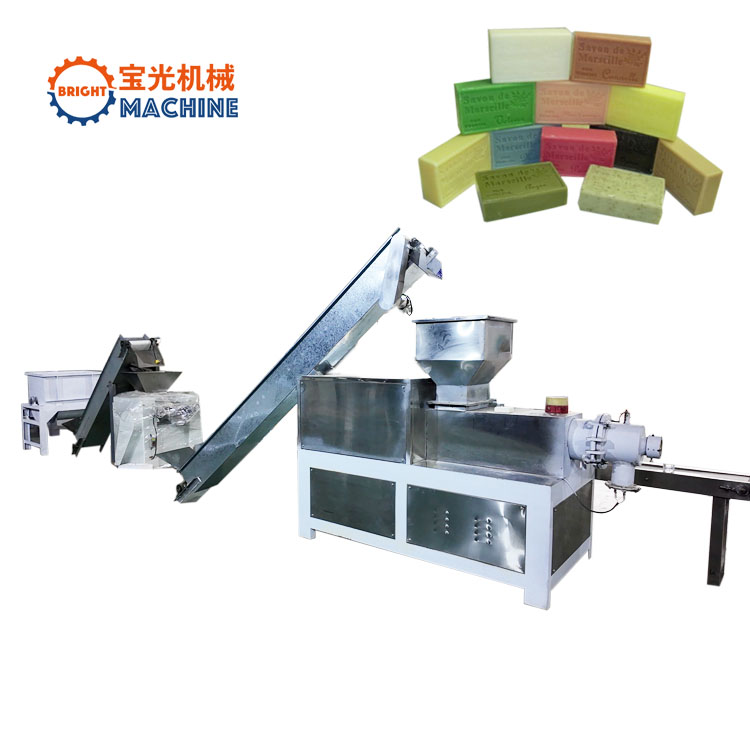

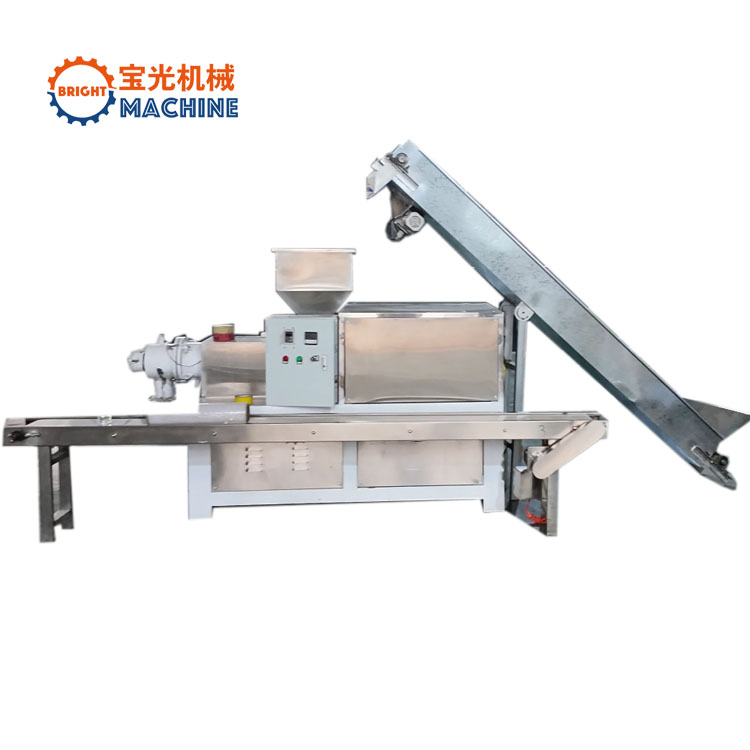

This soap line is used to produce soap bar with fatty acid content (active content) from 40% to 80%. Material is soap noodle. Capacity is 200 kg/hr. The dimension and pattern of the soap can be made by customer’s requirements.
II. Production Condition:
1. Capacity: 100-300 kg/hr.
2. Materials: soap noodle (soap grains), pigment, fragrance.
3. Workshop: above 50 m2 , L: 10 m, W: 5 m, H: 3 m, including operating space, excluding packing machine.
4. Power: 25 kW, 380 V, 50 HZ.
5. Staff: 2-4 persons
Production Process:

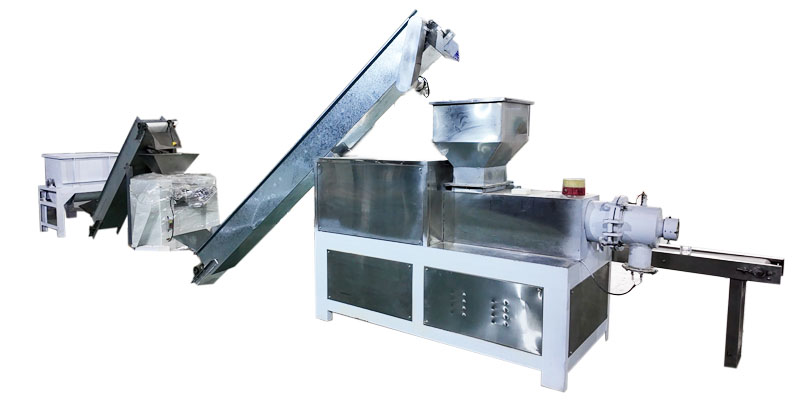

Mixer→Three roller mill→Plodder→Cut and Stamp
Product Description:

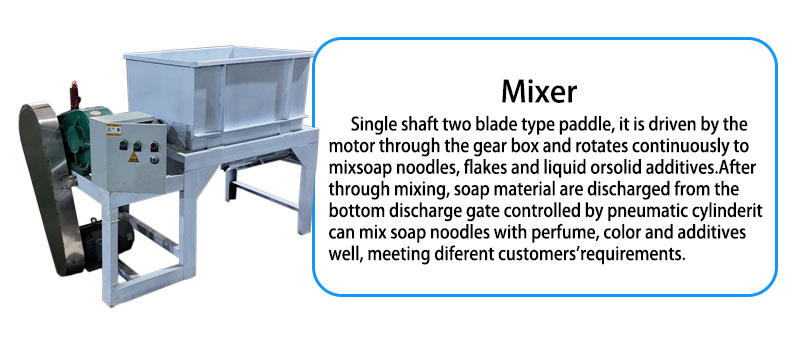

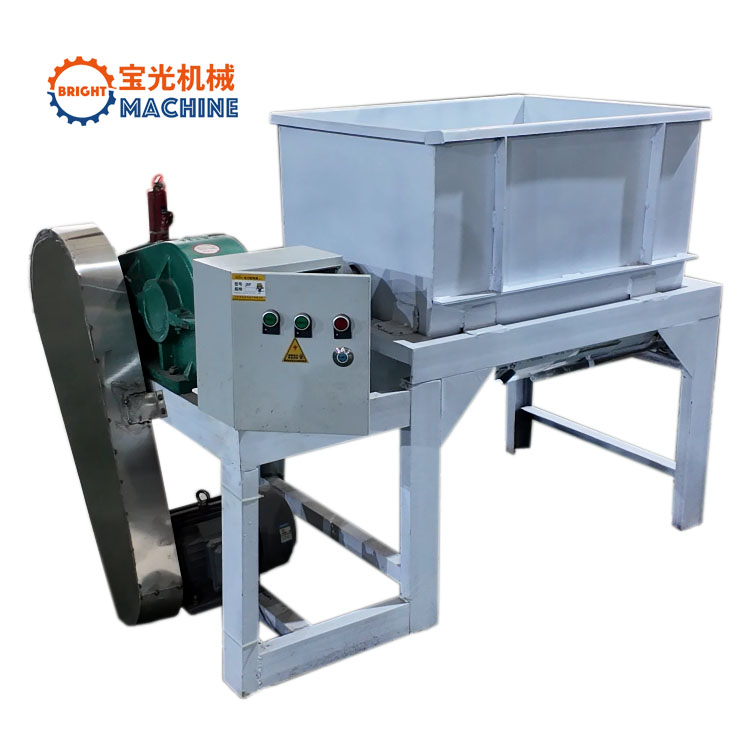

| Capacity | 200kg |
| Power | 2.2kw |
| Size | 1500*1000*1150 |
| Weight | 500kg |

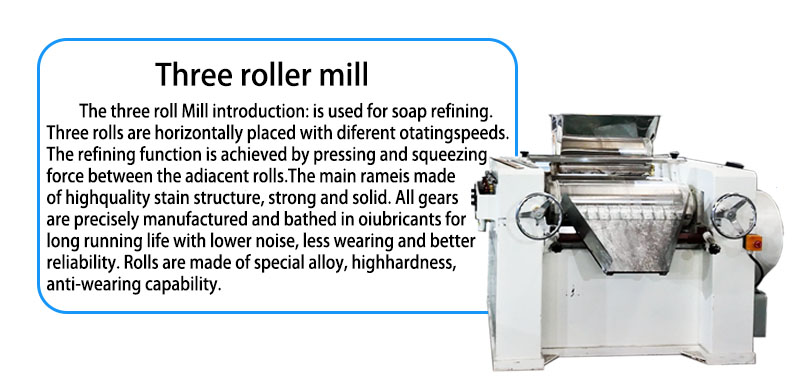

| Capacity | 300kg |
| Power | 4kw |
| Roller diameter | 150mm |
| Size | 975*820*950mm |
| Weight | 600kg |

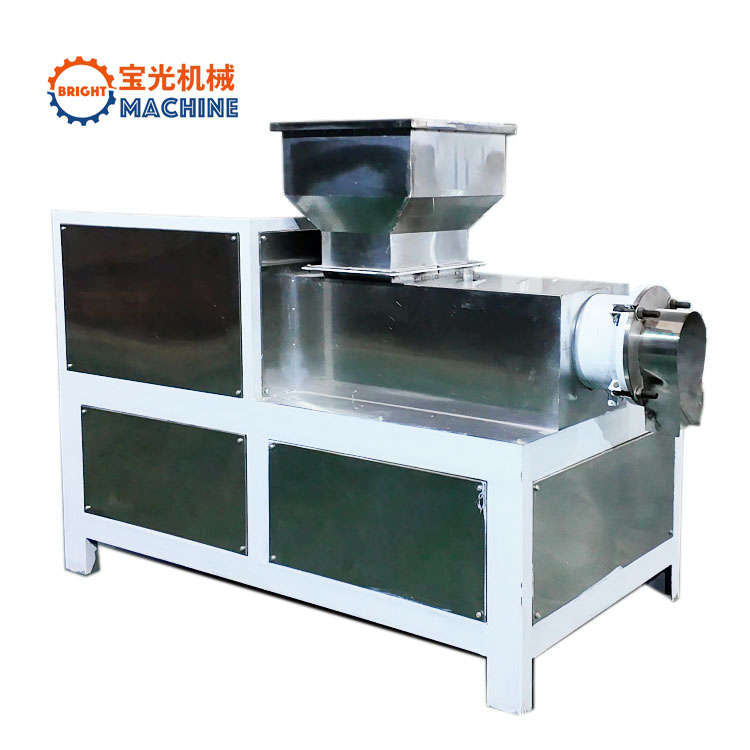

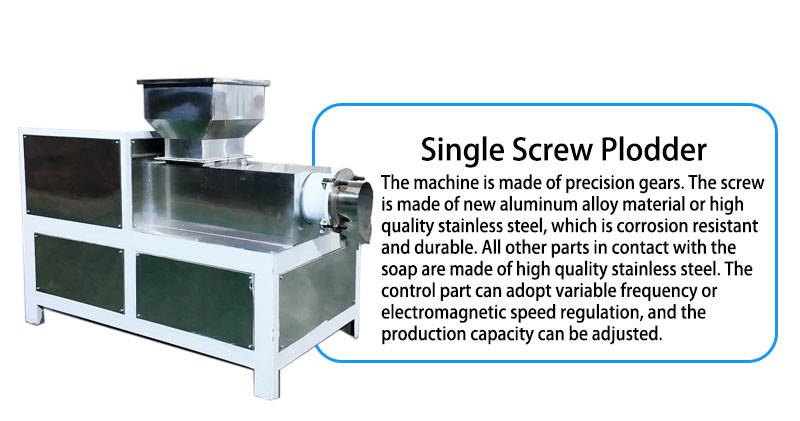

| Capacity | 300kg |
| Screw rod diameter | 180mm |
| Power | 4kw |
| Size | 1600*1300*1450mm |
| Weight | 1300kg |

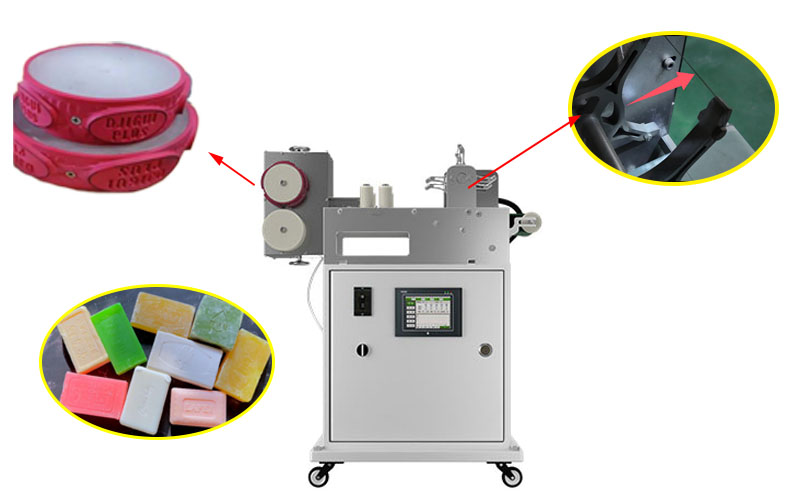

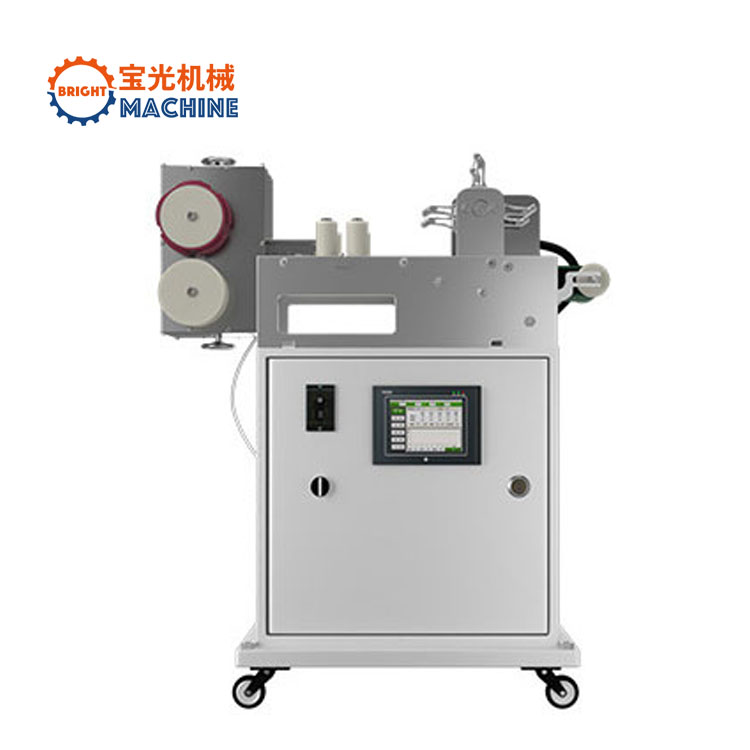

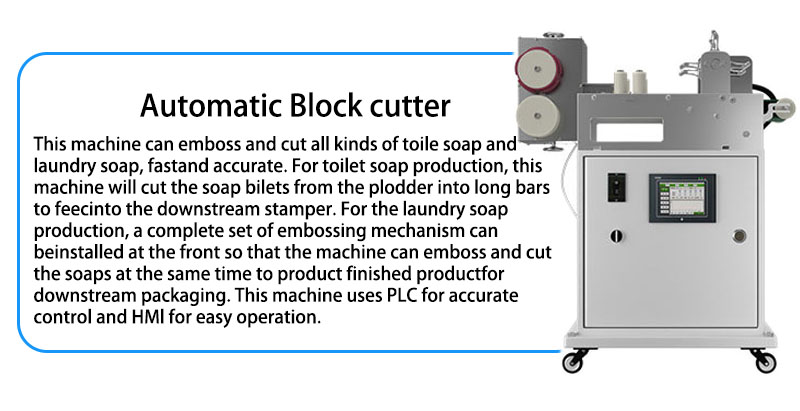

| Max Capacity | 300kg |
| Cut bar size | 60-400mm |
| Size | 1000*800*1350mm |
| Weight | 138kg |
